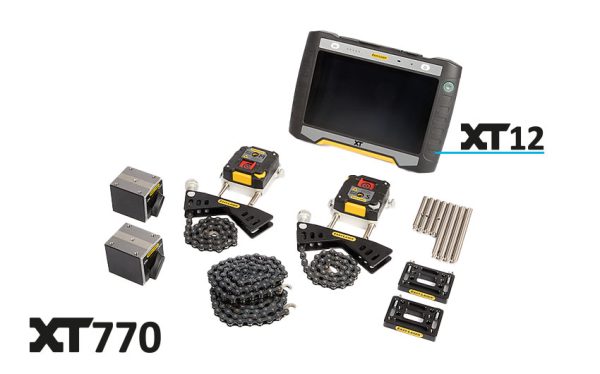

The complete alignment system
With Easy-Laser XT770 you can perform shaft alignment of horizontal and vertically/flange mounted machines, but also align machine trains, measure twist of foundation, soft foot, bearing clearance and more. The EasyTrend program allows you to keep track of machine movement over time. That is useful when checking for thermal expansion and pipe strain issues for example.
2 axis PSDs (position sensitive detectors) permit adjustment of your machine both vertically and horizontally at the same time, with measuring units in any position. We call it 360° Live adjustment. With the XT770 you have a choice of several different measurement methods, e.g. continuous sweep and multipoint. This gives you the flexibility you need to achieve the perfect measurement result.
Easy-Laser XT measuring units and display unit are shockproof and rated both IP66 and IP67 water and dust proof. Along with long operating times, this guarantees you will be able to take on and finish even the toughest jobs.
User-friendly
Use the rugged Easy-Laser XT12 display unit, or install the free XT Alignment app on your iOS or Android device. The intuitive user interface guides you through the measurement process.
Unique documentation possibilities
The XT12 display unit has a 13MP camera. You can also get the XT12 display unit with a built-in IR camera. This means you can add a thermal image of the machine before and after alignment. You can easily create and share a PDF report containing all measurement data and images.
Geometric measurements kit
With this kit added to your XT770, using the values program, you will be able to take flatness and straightness measurements with the highest reliability and precision. The kit includes the very versatile and long proven laser transmitter XT20/XT22 plus geo brackets.
Horizontal machines
The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for as found and as left in the same file.
Vertical/flange mounted machines
For measurement and alignment of vertically and flange mounted machines.
Machine train
Build your own machine train with theoretically as many machines as you like. You can pick the reference machine manually or let the program choose one that will minimize the need for adjustments.
