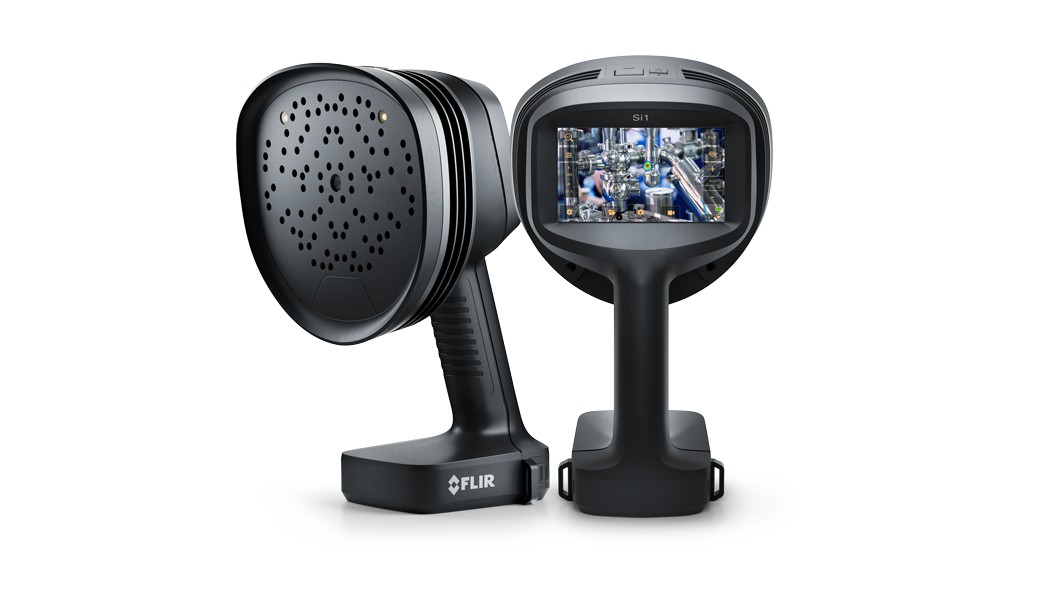

FLIR Si124 Acoustic Imaging Camera System

FLIR Si124 is an intelligent, easy-to-use imaging system designed to visually show pressurized leaks in compressed air systems and display partial discharge problems in high-voltage electrical systems.
This lightweight, one-handed solution can help utility, manufacturing, and engineering professionals identify efficiency loss and potential failures up to 10 times faster than traditional methods. Built with 124
microphones and a frequency range that covers audible and ultrasound (2 kHz to 65 kHz), the Si124 filters out industrial background noise to produce precise acoustic imagery. The acoustic image is overlaid in
real time on top of a digital camera picture, which allows the user to accurately pinpoint the source of the sound and classify problems. The Si124 features a plugin that enables users to import acoustic images
to FLIR Thermal Studio suite for offline editing, analysis, and advanced report creation. Field analysis and reporting can also be done using the FLIR Acoustic Camera Viewer cloud service. Adopting the FLIR Si124
as part of a regular maintenance routine, professionals can identify issues fast—helping utilities keep the power flowing and manufacturing operations going.

Find pressurized and vacuum air leaks and partial discharge quickly

Find Problems Faster

Detect compressed air leaks, partial discharge and corona up to 10 times faster with sound imaging vs. traditional methods

Reduce Costs, Improve Reliability

Minimize excess utility costs, equipment failures and downtime by ensuring proper air pressure to pneumatic equipment and locating partial discharge or corona precisely

Inspect Easily

Classify leak severity and partial discharge type in real time with this lightweight, smart tool that you can operate with one hand

Specifications

Overview
Dynamic Range	120 dB (frequency-dependent)
Distance	From 0.3 m (1 ft) up to 130 m (430 ft)
Leak Rate	In typical industrial environment: >0,032 l/min @ 3 bar from 3 m (9.8 ft) >0,05 l/min @ 3 bar from 10 m (32.8 ft) Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1 ft)
Size	315 mm × 169 mm × 160 mm (12.4 in × 6.6 in × 6.3 in)
Weight	1.25 kg (2.76 lb)
Zoom	2x digital zoom
